metal matrix composites - mmcs

At China Silicon Nitride Parts Inc., we understand the constant push for innovation in various industries. One such advancement is the development of metal matrix composites (MMCs), a revolutionary material category that merges the best qualities of metals and ceramics.

Metals are renowned for their strength, ductility, and good electrical conductivity. However, they can be susceptible to high temperatures, wear, and corrosion. Ceramics, on the other hand, offer exceptional hardness, wear resistance, and high-temperature performance. MMCs are composite materials where a metal matrix acts as the host structure, reinforced with ceramic particles, fibers, or whiskers. This combination unlocks a unique set of properties that surpass the limitations of traditional metals or ceramics alone.

Contact our experts to learn more about how we can partner with you.

7d2c0de32cee25e669c7035ed86dc7b0b8863726

mmc types

cast mmc

Produced by pouring molten aluminum containing SiC particles into a mold. (Product codes SA301, SA401, etc.).

Advantages:
1.Components made of these materials can be manufactured using the casting methods of sand mold casting and die casting. These aluminum castings, iron castings can be replaced without changing the shape.
2. With lightness equivalent to aluminum, and a Young’s Modulus 1.8X that of aluminum with reduced thermal expansion by 60% and increase in thermal conductivity.
3. With the rigidity higher than cast iron and about one third lighter than cast iron with 3x improved thermal conductivity..

infiltrated mmc

Molten aluminum is forced into a preform containing the SiC reinforcement. (Product codes SS501, SS701, etc.)

Advantages:
1.With lightness equivalent to aluminum and a Young’s Modulus 4X of aluminum with a one third reduced thermal expansion along with increased thermal conductivity.
2. While one third lighter than SUS and increased Young’s modulus by 20% with reduced thermal expansion by up to 40% and 10X increase in thermal conductivity.
3. It is easier and inexpensive to manufacture larger parts out of this material versus aluminum ceramics. By infiltrating aluminum in the ceramic it will improve the fracture toughness and make handling easier along with improved wear resistance.

mmc features

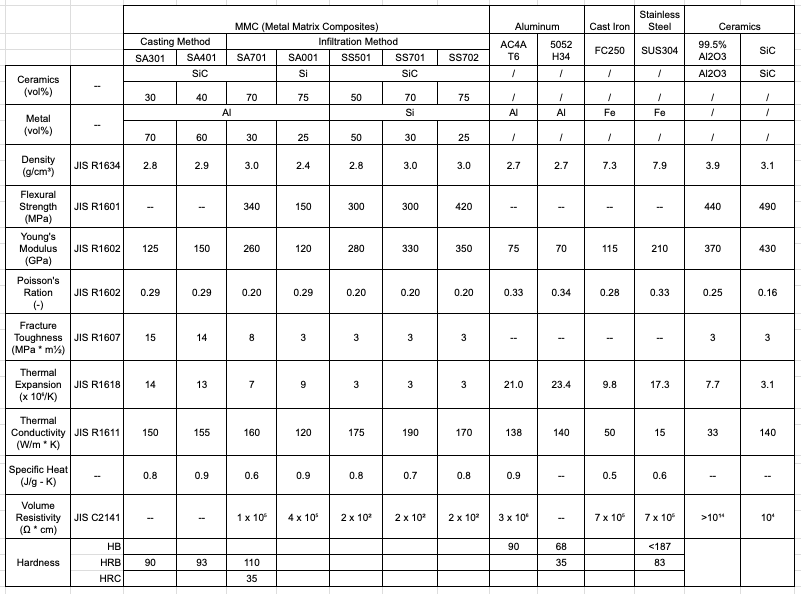

We offer metal matrix composites (MMCs) utilizing Aluminum (Al) as the base metal and Silicon Carbide (SiC) as the reinforcing ceramic. These MMCs come in two primary forms:

High Strength-To-Weight Ratio

MMCs combine the strength of metals with the lightweight nature of some ceramics, making them ideal for applications where weight reduction is crucial (e.g., aerospace).

Improved Vibration Damping

The presence of ceramic reinforcements and the resulting microstructure within MMCs can enhance their ability to dampen vibrations compared to traditional metals. This property is valuable for applications requiring noise reduction or improved structural stability under vibration (e.g., some automotive component machine parts).

Enhanced Wear Resistance

Ceramic reinforcements significantly improve the wear resistance of MMCs compared to traditional metals, making them suitable for components subjected to friction and abrasion (e.g., engine parts).

improved high-temperature performance

Including ceramics often elevates MMCs' ability to withstand high temperatures, expanding their application range in demanding environments (e.g., turbine blades).

customizable properties

By varying the type, amount, and distribution of the ceramic reinforcement, MMCs can be customized to achieve specific properties for diverse applications.

multifunctionality

MMCs can possess a combination of desirable properties like strength, wear resistance, and thermal conductivity, making them suitable for complex applications.

mmc products

industries that use mmcs

aerospace

MMCs offer a high strength-to-weight ratio, making them ideal for lightweight yet robust aerospace structures. They also exhibit good wear resistance and can withstand high temperatures encountered in aircraft engines.

automotive

MMCs provide enhanced wear resistance for components subjected to friction and abrasion, leading to improved engine performance and lifespan. Additionally, the lightweight nature of some MMCs can contribute to increased fuel efficiency.

electronics

Certain MMCs offer good thermal conductivity, which is crucial for dissipating heat generated by electronic components. This helps maintain optimal operating temperatures and prevents overheating.

China Silicon Nitride Parts Service Benefits

China Silicon Nitride Parts Inc. goes beyond simply offering MMC materials. We function as a partner for our clients throughout the process:

Material Selection

china ceramics experts can help end users, or OEMS identify the most suitable MMC type for their specific needs.

Design & Development

China Silicon Nitride Parts Inc. can collaborate with your team to optimize the design and properties of MMCs for their application.

Fabrication & Manufacturing

China Silicon Nitride Parts Inc. offers various fabrication techniques to create MMC components that meet precise specifications.
