Ceramic WEar Tiles

Name: Ceramic Wear Tiles
Brand: China Silicon Nitride Parts Inc.

China Silicon Nitride Parts Inc. offers a full range of shapes and sized ceramic tiles for your severe wear lining applications. china ceramics can offer standard-sized tiles (square and rectangular), hex tiles, as well as custom shapes and sizes for your demanding application.

China Silicon Nitride Parts Inc. offers a complete material portfolio for these ceramic wear tiles including; several grades of Aluminum Oxide, Zirconia Toughened Alumina, and Reaction Bonded Silicon Carbide.

China Silicon Nitride Parts Inc. also specializes in Sintered Silicon Carbide tiles for your most extreme corrosion, abrasive and wear environments.

Please contact us and allow our application engineers the opportunity to work with your engineering
team to recommend the right advanced high temperature tiles for your toughest challenges.

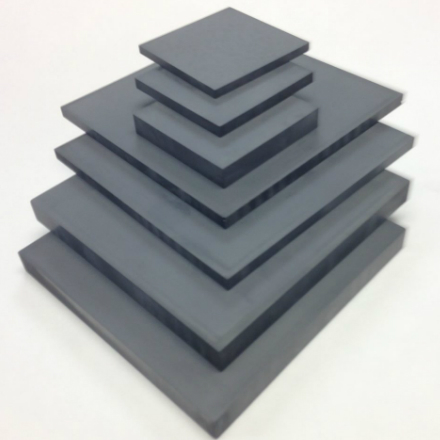

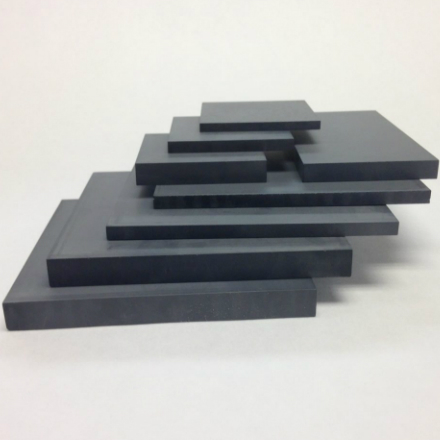

SiC (sintered silicon carbide) tiles - china ceramics

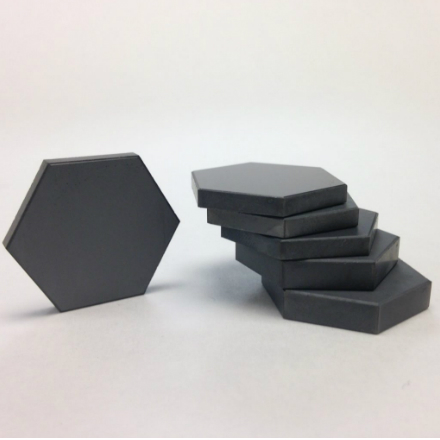

sintered silicon carbide tiles in a hexagon shape - china ceramics

Ceramic Wear Tile Inventory

Tile Size	Tolerances
4” x 4” x 0.200” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.225” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.250” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.275” Thk	+/- 0.030 L & W, +/- 0.010” Thk
2” x 4” x 0.290” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.300” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.315” Thk	+/- 0.030 L & W, +/- 0.010” Thk
4” x 4” x 0.400” Thk	+/- 0.030 L & W, +/- 0.010” Thk
2” x 2” x 0.125” Thk	+/- 0.015 L & W, +/- 0.010” Thk
2” x 2” x 0.187” Thk	+/- 0.015 L & W, +/- 0.010” Thk
2” x 2” x 0.250” Thk	+/- 0.015 L & W, +/- 0.010” Thk
2” x 2” x 0.350” Thk	+/- 0.015 L & W, +/- 0.010” Thk
30mm Hex Tile x 4mm Thk	+/- 0.010 L & W, +/- 0.010” Thk
30mm Hex Tile x 6mm Thk	+/- 0.010 L & W, +/- 0.010” Thk
30mm Hex Tile x 8mm Thk	+/- 0.010 L & W, +/- 0.010” Thk
